Panoramic Padbol Court

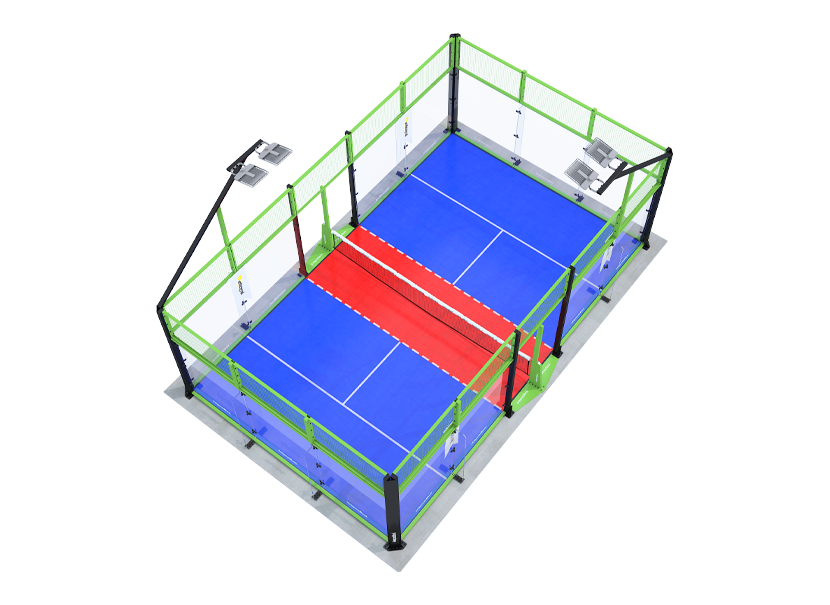

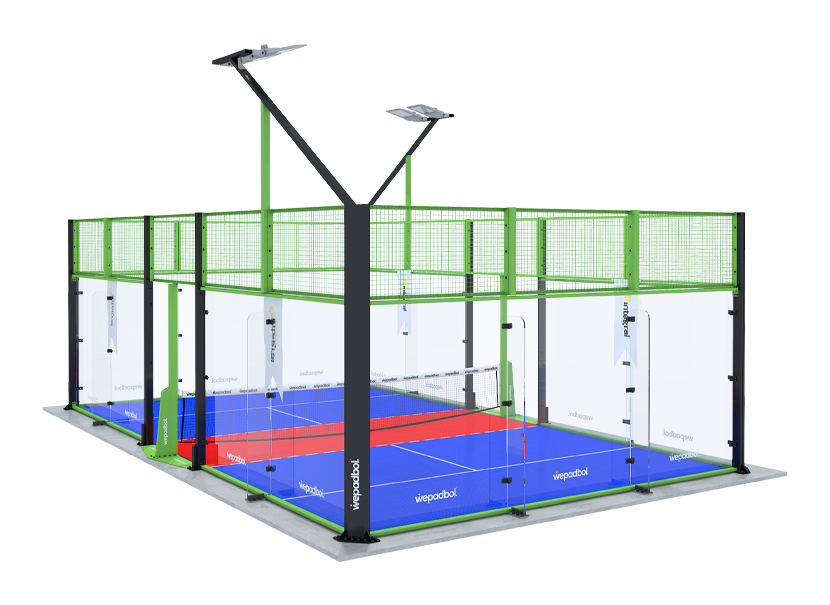

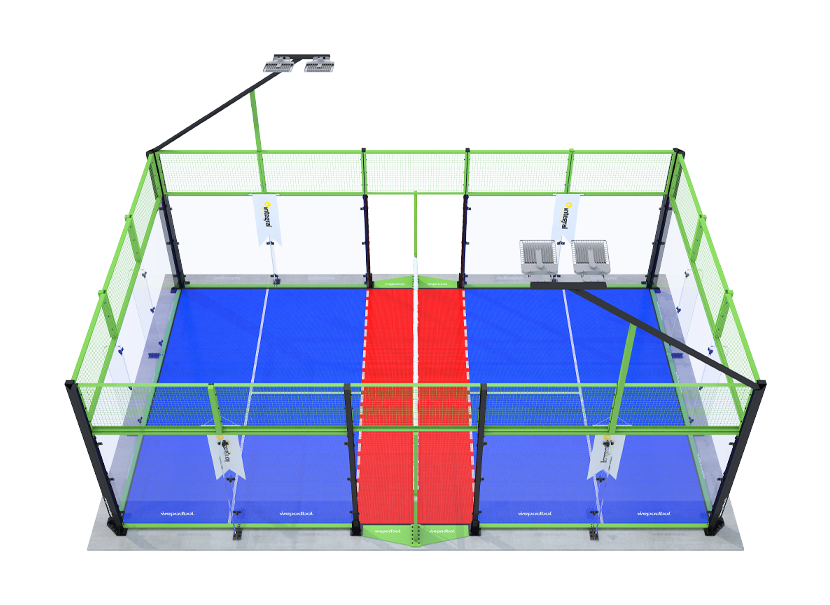

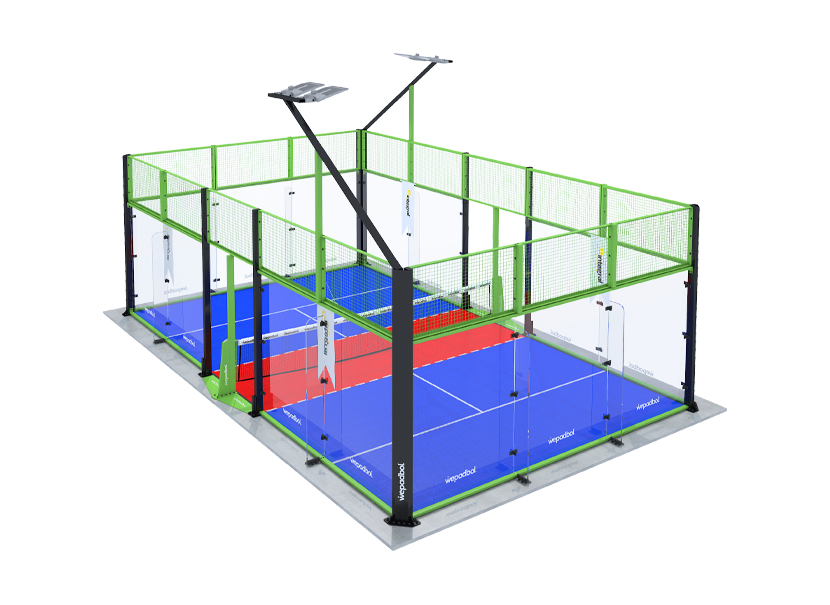

Panoramic Padbol Court is a 6x10 meter court designed with a panoramic steel structure, tempered glass, and galvanized wire mesh panels. Built with modular PVC or optional synthetic turf flooring, it provides maximum visibility and durability. Suitable for both indoor and outdoor use, it offers a safe, stylish, and high-performance play experience.

Get Offer PDF Document

Grass Types Used : Padel Turf Red

General Features

Technical Information

Gallery

Frequently Asked Questions

Get Offer

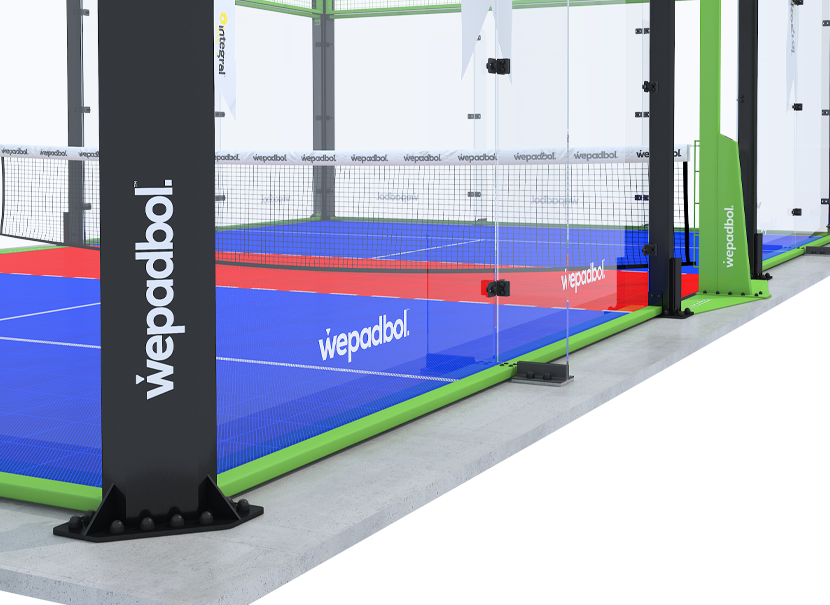

The Panoramic Padbol Court provides a modern playing experience with its frameless wide glass panels, durable steel structure, and high-performance sports flooring. Its stylish appearance, fast installation, and low maintenance make it an ideal choice for professional facilities.

TECHNICAL INFORMATION
Court Dimensions	Width: 6 meters	Length: 10 meters
Infrastructure	Width: 40 cm - Height: 50 cm	C30 beton
Infrastructure - Field Concrete	C20 ﬁeld concrete with 15 cm thick steel mesh
Water Drainage	Water is discharged from the surface by giving a 0.5% slope to the concrete ﬂoor in one direction.

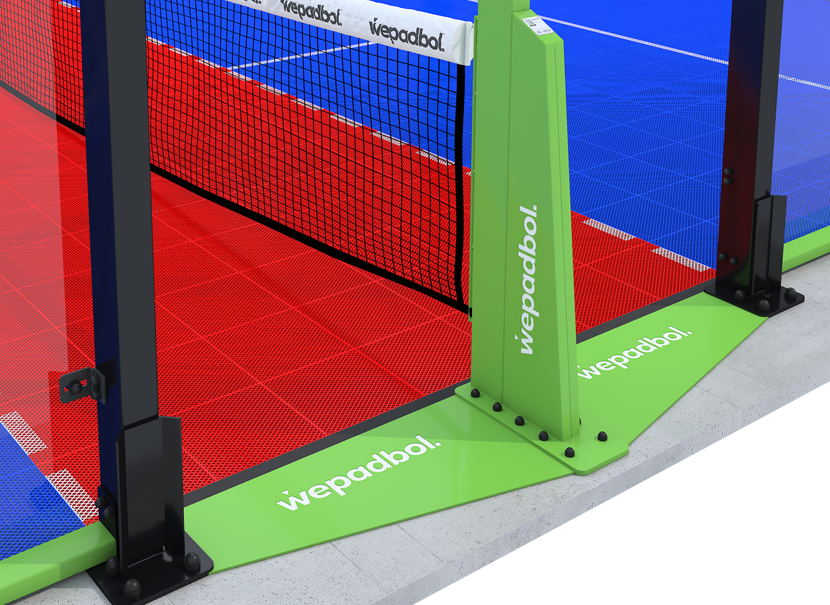

Steel Construction	Double Corner Columns: 80 x 120 x 3 mm Beams: 40 x 80 x 2.5 mm / Modular bolted system	Intermediate Columns: 80 x 120 x 3 mm / Height: 3.50 m
Steel Mesh	Mesh spacing: 50 mm * 50 mm	Wire Thickness: 4 mm
Steel Surface Coating	Electro Galvanized Coating	Electrostatic Powder Coating
Resistance	Maximum Wind Speed: 70 km/h
Glass	12 mm Tempered Glass
Lighting	4 x 200 W LED Projectors
Synthetic Grass (Optional)	11 - 13 mm FB - MFF - TXT Synthetic Grass

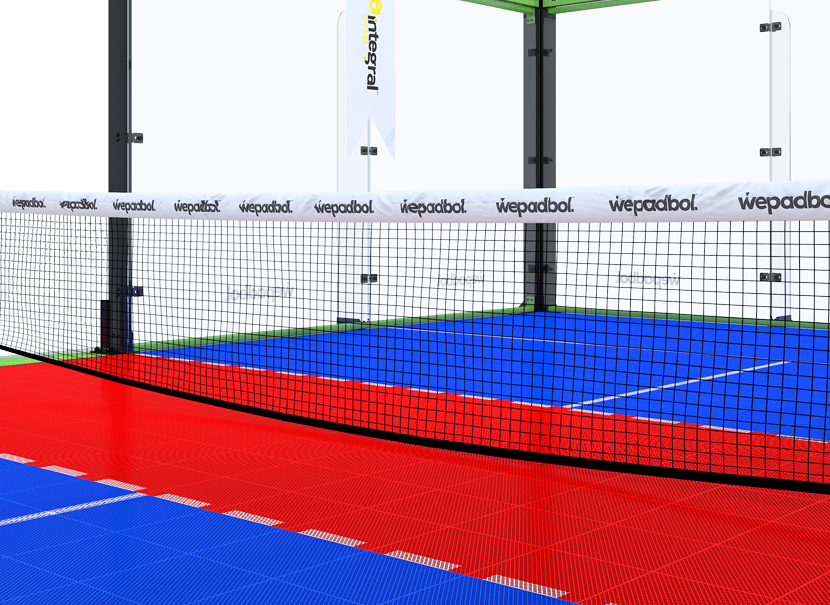

Equipment	Padbol Goalposts and Net

Full Panoramic Visibility

Frameless Ultra-Modern Design

Enhanced Spectator Experience

Stylish and Durable Structure

Ideal for Premium Sports Facilities

1. Which standards is the Panoramic Padbol Court manufactured according to?

The Panoramic model is designed in accordance with the official measurements and game standards of Padbol. The steel construction, 12 mm tempered glass, steel mesh, and modular PVC flooring system meet international safety and performance criteria.

2. Is the Panoramic Padbol Court suitable for outdoor or indoor use?

The Panoramic model is designed to be used in both outdoor and indoor areas. Its steel construction and glass structure are suitable for both usage types.

3. What are the technical dimensions and height of the Panoramic model?

The dimensions of the Panoramic court are 10 meters in length, 6 meters in width, and 3.50 meters in height. The entire construction is assembled using a modular bolted system.

4. With which flooring system is the Panoramic Padbol Court delivered?

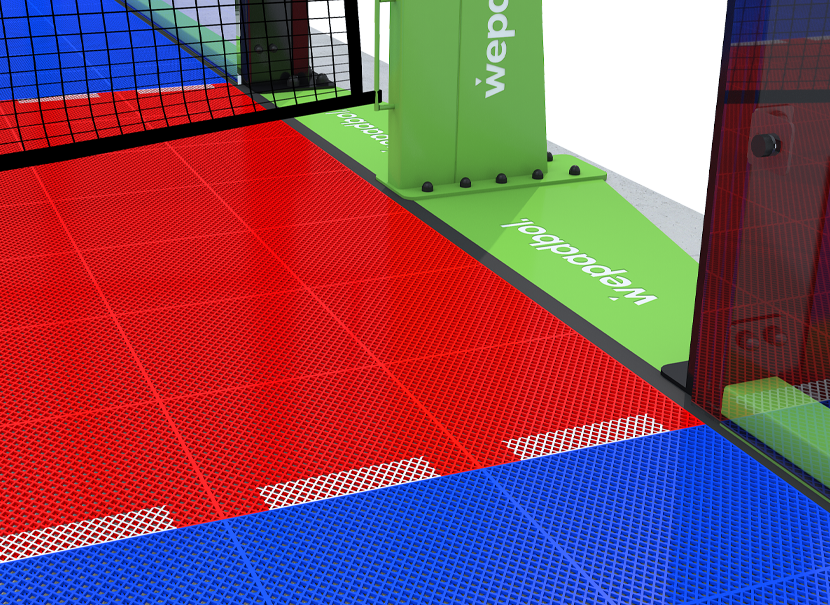

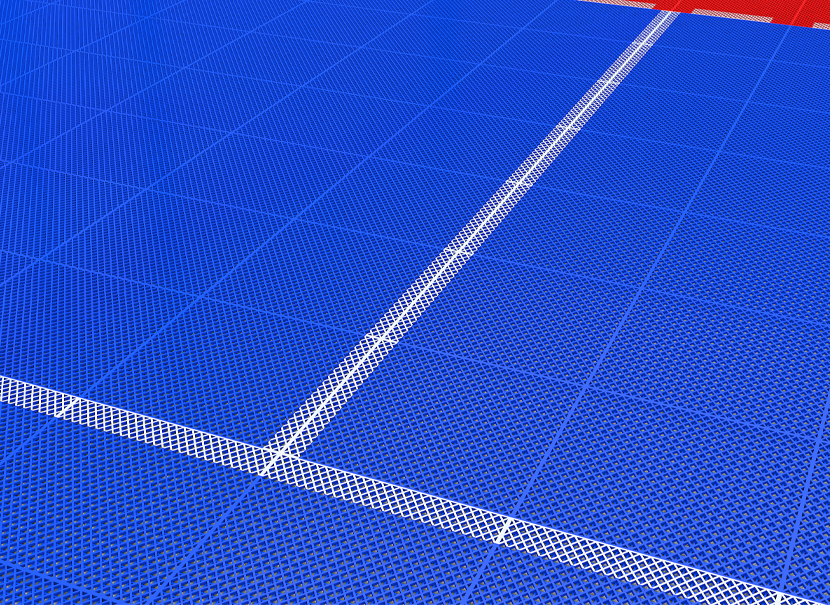

The standard flooring of the Panoramic model is Modular PVC sports flooring (30×30 cm interlocking system). Optionally, 11–13 mm UV-enhanced synthetic turf may also be applied.

5. How long does the production and installation process of the Panoramic Padbol Court take?

Infrastructure: 2 days Steel Mesh Production: 10 days Steel Construction Production: 15 days Glass Manufacturing: 7 days Lighting Manufacturing: 2 days PVC Flooring Supply: 7 days Installation: Steel Construction: 5 days Glass Installation: 2 days Lighting: 1 day PVC Flooring: 1 day As many stages can run simultaneously, total delivery time varies between 2–4 weeks.

6. What maintenance procedures are required for the Panoramic Padbol Court?

Since the Panoramic model is suitable for both indoor and outdoor use, the maintenance steps are quite simple: Steel Construction & Mesh: Durable thanks to galvanization and electrostatic powder paint; routine cleaning is sufficient. 12 mm Tempered Glass: Periodic surface cleaning is recommended. Modular PVC Flooring: Its perforated structure facilitates water drainage; sweeping and washing maintain the floor. Optional Synthetic Turf: Performance is maintained with brushing and silica sand support when necessary.

7. What are the differences between the Panoramic and Origin Padbol Courts?

The Panoramic Padbol Court offers a more transparent and premium design compared to the Origin model. The 12 mm tempered glass used in the Panoramic model is more durable than the 10 mm glass in the Origin model and provides an uninterrupted viewing area. Additionally, while the Panoramic model can be used in both indoor and outdoor environments, the Origin model is manufactured only for outdoor use. In terms of wind resistance, the Origin model offers higher durability at 90 km/h, while the Panoramic offers 70 km/h. In summary, the Panoramic model is ideal for facilities prioritizing aesthetics and visual quality, whereas the Origin model is a perfect choice for projects seeking outdoor durability and robustness.
